Fast Random Projection

Overview

Fast Random Projection (or FastRP) is a scalable and efficient algorithm for learning node representations in a graph. It computes node embeddings iteratively through two main steps: first, constructing a node similarity matrix; second, reducing dimension using random projection.

FastRP was proposed by H. Chen et al. in 2019:

• H. Chen, S.F. Sultan, Y. Tian, M. Chen, S. Skiena, Fast and Accurate Network Embeddings via Very Sparse Random Projection (2019)

FastRP Framework

The authors of FastRP observe that most network embedding methods follow a common two-step pattern: (1) construct a node similarity matrix or implicitly sample node pairs from it, and (2) apply dimension reduction techniques to obtain embeddings.

Regarding the dimension reduction, many popular algorithms, like Node2Vec, rely on time-consuming methods such as Skip-gram. The authors argue that the effectiveness of these methods should be attributed to the quality of the similarity matrix, rather than the dimension reduction method employed.

Based on this insight, FastRP utilizes very sparse random projection, a scalable, optimization-free method for dimension reduction.

Very Sparse Random Projection

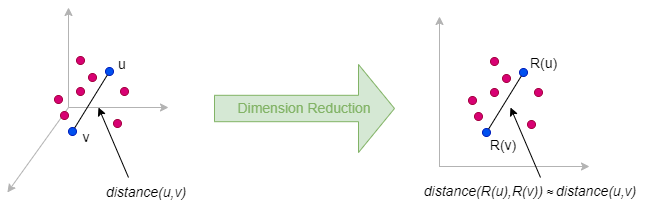

Random projection is a dimension reduction method that approximately preserves pairwise distances between data points when embedding them from a high-dimensional space to a lower-dimensional space. Its theoretical foundation is primarily based on the Johnson-Lindenstrauss Lemma.

The idea behind random projection is very simple: to reduce a matrix M_n×m (with n = m for graph data) to a lower-dimensional matrix N_n×d where d ≪ n, we multiply M by a random projection matrix R_m×d: N = M ⋅ R**.

The matrix R is generated by independently sampling its entries from a random distribution. Specifically, FastRP uses very sparse random projection for dimension reduction, where each entry of R is sampled from the following distribution:

and s=sqrt(m).

Very sparse random projection offers high computational efficiency, as it requires only matrix multiplication and (1-1/s) of the entries of R are zero.

Additionally, Ultipa supports initializing the matrix R with a combination of some selected numeric node properties (features). In this case, each row of matrix R is formed by concatenating two parts:

• Elements d₁ ~ d_x are generated by the Very Sparse Random Projection algorithm.
• Elements p₁ ~ p_y is a linear combination of the selected node property values.
• The total embedding dimension is x + y, where y is referred to as the property dimension.
• The number of selected node features does not need to be the same as the property dimension.

Node Similarity Matrix Construction

FastRP keeps two key features when constructing the node similarity matrix:

1. Preserve high-order proximity in the graph
2. Apply element-wise normalization to the matrix

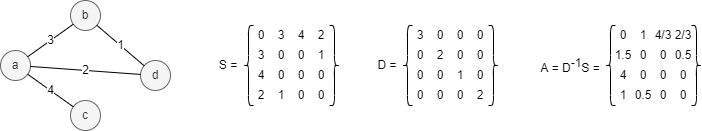

Let S be the adjacency matrix of graph G =(V,E), D be the degree matrix, and A be the transition matrix and A = D^-1S. In the example below, the number on each edge represents the edge weight:

In the transition matrix A, the entry A_ij represents the probability of reaching node j from node i in a 1-step random walk. Furthermore, raising A to the k-th power yields the matrix A^k, where each entry A^k_ij denotes the probability of reaching node j from node i in exactly k steps of random walk. Therefore, the matrix A^k preserves high-order proximity between nodes in the graph.

However, as k → ∞, it can be proved that A^k_ij → d_j/2m, where m = |E| and d_j is the degree of the j-th node. Since many real-world graphs are scale-free, the entries in A^k follow a heavy-tailed distribution. This implies that the pairwise distances between data points in A^k are predominantly influenced by columns with exceptionally large values. This skews the similarity and reduces effectiveness of the subsequent dimension reduction step.

To address this, FastRP applies an additional normalization step to the matrix A^k by multiplying it with a diagonal normalization matrix L, where each diagonal entry is defined as L_ij = (d_j/2m)^β, and β is the normalization strength. The parameter β controls the influence of node degree on the embeddings: when β is negative, the importance of high-degree neighbors is weakened; when β is positive, their importance is amplified.

Algorithm Process

The FastRP algorithm follows these steps:

1. Generate the random projection matrix R.
2. Reduce the dimension of the normalized 1-step transition matrix: N₁ = A ⋅ L ⋅ R
3. Reduce the dimension of the normalized 2-step transition matrix: N₂ = A ⋅ (A ⋅ L ⋅ R) = A ⋅ N₁
4. Repeat step 3 until the normalized k-step transition matrix: N_k = A ⋅ N_k-1
5. Generate the weighted combination of different powers of A: N = α₁N₁ + ... + α_kN_k, where α₁,...,α_k are the iteration weights.

The efficiency of FastRP also benefits from the associative property of matrix multiplication. Instead of computing A^k from scratch, it updates the result iteratively using previous results.

Considerations

• The FastRP algorithm treats all edges as undirected, ignoring their original direction.

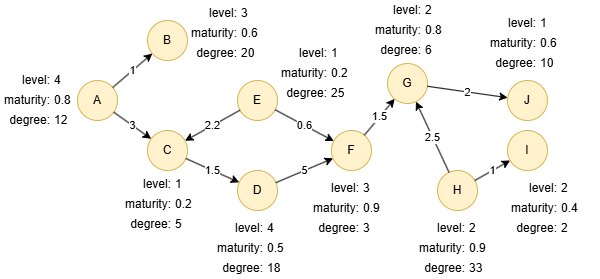

Example Graph

Run the following statements on an empty graph to define its structure and insert data:

ALTER NODE default ADD PROPERTY {
  level uint32, maturity float, degree uint32
};
ALTER EDGE default ADD PROPERTY {
  score float
};
INSERT (A:default {_id: "A", level: 4, maturity: 0.8, degree: 12}),
       (B:default {_id: "B", level: 3, maturity: 0.6, degree: 20}),
       (C:default {_id: "C", level: 1, maturity: 0.2, degree: 5}),
       (D:default {_id: "D", level: 4, maturity: 0.5, degree: 18}),
       (E:default {_id: "E", level: 1, maturity: 0.2, degree: 25}),
       (F:default {_id: "F", level: 3, maturity: 0.9, degree: 3}),
       (G:default {_id: "G", level: 2, maturity: 0.8, degree: 6}),
       (H:default {_id: "H", level: 2, maturity: 0.9, degree: 33}),
       (I:default {_id: "I", level: 2, maturity: 0.4, degree: 2}),
       (J:default {_id: "J", level: 1, maturity: 0.6, degree: 10}),
       (A)-[:default {score: 1}]->(B),
       (A)-[:default {score: 3}]->(C),
       (C)-[:default {score: 1.5}]->(D),
       (D)-[:default {score: 5}]->(F),
       (E)-[:default {score: 2.2}]->(C),
       (E)-[:default {score: 0.6}]->(F),
       (F)-[:default {score: 1.5}]->(G),
       (G)-[:default {score: 2}]->(J),
       (H)-[:default {score: 2.5}]->(G),
       (H)-[:default {score: 1}]->(I);

create().node_property(@default, "level", uint32).node_property(@default, "maturity", float).node_property(@default, "degree", uint32).edge_property(@default, "score", float);
insert().into(@default).nodes([{_id:"A", level:4, maturity:0.8, degree:12},{_id:"B", level:3, maturity:0.6, degree:20},{_id:"C", level:1, maturity:0.2, degree:5},{_id:"D", level:4, maturity:0.5, degree:18},{_id:"E", level:1, maturity:0.2, degree:25},{_id:"F", level:3, maturity:0.9, degree:3},{_id:"G", level:2, maturity:0.8, degree:6},{_id:"H", level:2, maturity:0.9, degree:33},{_id:"I", level:2, maturity:0.4, degree:2},{_id:"J", level:1, maturity:0.6, degree:10}]);
insert().into(@default).edges([{_from:"A", _to:"B", score:1}, {_from:"A", _to:"C", score:3}, {_from:"C", _to:"D", score:1.5}, {_from:"D", _to:"F", score:5}, {_from:"E", _to:"C", score:2.2}, {_from:"E", _to:"F", score:0.6}, {_from:"F", _to:"G", score:1.5}, {_from:"G", _to:"J", score:2}, {_from:"H", _to:"G", score:2.5}, {_from:"H", _to:"I", score:1}]);

Creating HDC Graph

To load the entire graph to the HDC server hdc-server-1 as my_hdc_graph:

CREATE HDC GRAPH my_hdc_graph ON "hdc-server-1" OPTIONS {
  nodes: {"*": ["*"]},
  edges: {"*": ["*"]},
  direction: "undirected",
  load_id: true,
  update: "static"
}

hdc.graph.create("my_hdc_graph", {
  nodes: {"*": ["*"]},
  edges: {"*": ["*"]},
  direction: "undirected",
  load_id: true,
  update: "static"
}).to("hdc-server-1")

Parameters

Algorithm name: fastRP

File Writeback

CALL algo.fastRP.write("my_hdc_graph", {
  return_id_uuid: "id",
  dimension: 5,
  normalizationStrength: 1.5,
  iterationWeights: [0, 0.8, 0.2, 1],
  edge_schema_property: 'score',
  node_schema_property: ['level', 'maturity', 'degree'],
  propertyDimension: 2
}, {
  file: {
    filename: "embeddings"
  }
})

algo(fastRP).params({
  projection: "my_hdc_graph",
  return_id_uuid: "id",
  dimension: 5,
  normalizationStrength: 1.5,
  iterationWeights: [0, 0.8, 0.2, 1],
  edge_schema_property: 'score',
  node_schema_property: ['level', 'maturity', 'degree'],
  propertyDimension: 2
}).write({
  file:{
    filename: 'embeddings'
  }
})

_id,embedding_result
J,-1.12587,-1.20511,-1.12587,0.079247,0.079247,
D,-1.11528,-1.22975,-1.11528,0,0,
F,-1.1547,-1.1547,-1.1547,0,0,
H,-1.07893,-1.15311,-1.22729,0,0,
B,-1.1547,-1.1547,-1.1547,0,0,
A,-1.1547,-1.1547,-1.1547,0,0,
E,-1.12083,-1.12083,-1.21962,0,0,
C,-1.24807,-1.24807,-0.394019,-0.854049,0,
I,-1.1547,-1.1547,-1.1547,0,0,
G,-0.538663,-1.54159,-1.04013,-0.501465,0,

DB Writeback

Writes the embedding_result values from the results to the specified node property. The property type is float[].

CALL algo.fastRP.write("my_hdc_graph", {
    return_id_uuid: "id",
    dimension: 10,
    normalizationStrength: 1.5,
    iterationWeights: [0, 0.8, 0.2, 1],
    edge_schema_property: 'score',
    node_schema_property: ['level', 'maturity', 'degree'],
    propertyDimension: 2
}, {
  db: {
    property: "vector"
  }
})

algo(fastRP).params({
  projection: "my_hdc_graph",
  return_id_uuid: "id",
  dimension: 10,
  normalizationStrength: 1.5,
  iterationWeights: [0, 0.8, 0.2, 1],
  edge_schema_property: 'score',
  node_schema_property: ['level', 'maturity', 'degree'],
  propertyDimension: 2
}).write({
  db: {
    property: "vector"
  }
})

Full Return

CALL algo.fastRP.run("my_hdc_graph", {
  return_id_uuid: "id",
  dimension: 3,
  normalizationStrength: 1.5,
  iterationWeights: [0, 0.8, 0.2, 0.3, 1]
}) YIELD embeddings
RETURN embeddings

exec{
  algo(fastRP).params({
    return_id_uuid: "id",
    dimension: 3,
    normalizationStrength: 1.5,
    iterationWeights: [0, 0.8, 0.2, 0.3, 1]
  }) as embeddings
  return embeddings
} on my_hdc_graph

Result:

Stream Return

CALL algo.fastRP.stream("my_hdc_graph", {
  return_id_uuid: "id",
  dimension: 4,
  normalizationStrength: 1.5,
  iterationWeights: [0, 0.8, 0.2, 0.3, 1]
}) YIELD embeddings
RETURN embeddings

exec{
  algo(fastRP).params({
    return_id_uuid: "id",
    dimension: 4,
    normalizationStrength: 1.5,
    iterationWeights: [0, 0.8, 0.2, 0.3, 1]
  }).stream() as embeddings
  return embeddings
} on my_hdc_graph

Result:
